Cantilever Racking

ATOL Cantilever Racking is designed to maximise your storage space, whilst giving you easy accessibility and excellent product presentation. It permits you to operate the safest possible storage practices and stores your stock in the most appropriate way.

Our cantilever racking has been tried and tested by the best in British industry and has passed every time. The system is ideally suited for storing your long, irregular and mixed loads. Our clients store products as diverse as: timber, furniture, lintels, bars, pipes, sheet, steel, tubing, plastics, windows, insulation and even boats. All parameters are individually designed to each customer's requirements.

Your racking can:

  • be double or single sided
  • incorporate fixed, adjustable, slip-in removable arms, or any combination of the three
  • include end stops, tyre guards, guide rails, decks and any other extras you might need
  • have a weather protection canopy

All offered hot-dipped galvanised and/or in colours to blend in with your corporate image.

Cantilever racking is incredibly versatile and can be tailored to suit a variety of products including:

Lintel Racks
Lintel Racks
Lintel Racks
Pipe Storage
Racks with Guide Rails
Cable Dispensers

Also available:

Copper Pipe Racking, Bespoke Racking, Racks with Trays, Worktop Racks

Component Details and Pricing (all prices are ex-works, exclusive of VAT)

The figures and examples below are based on standard painted 5000mm columns with 1000kg adjustable safe working load arms.

There are many different sizes, loadings, arm types and accessories available which may be more suited to your particular application so please feel free to call us for a more tailored, no obligation quote.

Cross Braces are required on the first and last frames of every run and then on alternate frames to the Tie Set. A Cross Brace Set (2 cross braces) is required if the column height is greater than 4500mm).

Your racking can be finished in either a colour of your choice or galvanised.

Cantilever Racking Components

Fully Adjustable 1000kg Arm £22.00
Fully Adjustable 1000kg Arm with Head Guard £27.20
Single Sided Frame 5000mm including Tyre Guard £262.51
Double Sided Frame 5000mm including Tyre Guards £303.10
Cross Brace Set £50.07
Cross Brace £31.12
Intermediate Tie Set £17.59

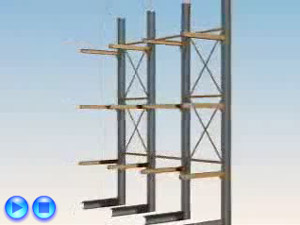

Single Sided
  • 4 x Single Sided Frame 5000mm including Tyre Guard
  • 8 x Fully Adjustable 1000kg Arm
  • 4 x Fully Adjustable 1000kg Arm with Head Guard
  • 2 x Cross Brace Set
  • 1 x Intermediate Tie set
  • 12 x SWL stickers
  • All necessary fixings

£1452.58

Discounts available on bulk orders

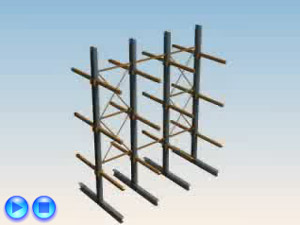

Double Sided
  • 4 x Double Sided Frame 5000mm including Tyre Guards
  • 16 x Fully Adjustable 1000kg Arm
  • 8 x Fully Adjustable 1000kg Arm with Head Guard
  • 2 x Cross Brace Set
  • 1 x Intermediate Tie set
  • 24 x SWL stickers
  • All necessary fixings

£1737.40

Discounts available on bulk orders
